Welcome to Windoer, a trusted provider of premium window and door solutions.
As one of the leading system solution provider of windows, doors and façades, we are dedicated to ongoing research and innovation. Our products are also making breakthroughs in terms of appearance, performance and experience.
KA Slim inherits the minimalist design concept of KA series and is even much slimmer in terms of frame + sash width which is about 30% less compared to traditional windows. It also has high thermal insulation and excellent acoustic performance, providing luxurious & comfortable living experience!
Much slimmer in terms of frame + sash width which is about 30% less compared to traditional windows.
The system offers great possibilities in architecture from residential to commercial, from new to refurbishment.
| C67KA SLIM | C77KA SLIM | C90KA SLIM | |
|---|---|---|---|
| PERFORMANCES | |||
| Air Permeability : | 国标8级 | 国标8级 | 国标8级 |
| Water Resistance : | 国标6级 | 国标6级 | 国标6级 |
| Wind Load : | 国标9级 | 国标9级 | 国标9级 |
| Uw Value W/m²K (Double Glazing) : | from 1.52 | from 1.36 | from 1.25 |
| Uw Value W/m²K (Triple Glazing) : | from 1.04 | from 0.87 | from 0.77 |
| SIZE LIMITS | |||
| Frame Dimension : | 67.0mm | 77.0mm | 91.0mm |
| Sash Dimension : | 77.0mm | 87.0mm | 101.0mm |
| Min Glass Thick : | 24mm | 24mm | 24mm |
| Max Glass Thickness (mm) : | 52mm | 62mm | 75mm |
| Max Sash Width (mm) : | 1500mm | 1500mm | 1500mm |
| Max Sash Height (mm) : | 2100mm | 2100mm | 2100mm |
| Maximum Sash Load (kg) : | 110KG for 110°，100KG for 180° | 110KG for 110°，100KG for 180° | 110KG for 110°，100KG for 180° |
| SOLUTIONS | |||
| Inward Opening : | yes | yes | yes |
| Tilt & Turn : | yes | yes | yes |

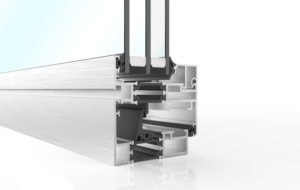

C67KA Slim

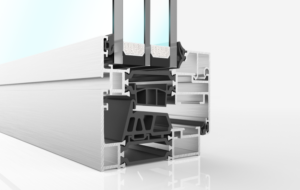

C77KA Slim

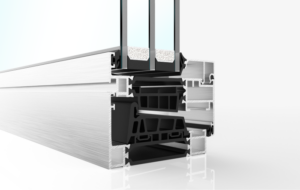

C90KA Slim
