KA Premium Aluminium Open-out Windows

AluK KA premium open-out windows are designed with flush surface, which brings a touch of elegance to the interior. It can be applied together with KA premium turn & tilt windows for the overall project.

It can also realize 90° external opening and 80KG max sash load with heavy duty arms, which enables the freedom of large sash design. At the same time, it’s available with central gasket for excellent thermal performance, with k value below 1.40W/m²K.

Design Features

Designed with flush surface, which brings a touch of elegance to the interior.



Options

Available with:

  • central gasket
  • heavy duty arm



Application Type

The system offers great possibilities in architecture from residential to commercial, from new to refurbishment.

PERFORMANCES
Air Permeability : 国际8级
Water Resistance : 国际6级
Wind Load : 国际9级
Uw Value W/m²K (Double Glazing) : from 1.57
Uw Value W/m²K (Triple Glazing) : from 1.15
SIZE LIMITS
Frame Dimension : 67mm
Sash Dimension : 77mm
Min Glass Thick : 24mm
Max Glass Thickness (mm) : 52mm
Max Sash Width (mm) : 1200mm
Max Sash Height (mm) : 2200mm
Maximum Sash Load (Kg) : 50/80KG
SOLUTIONS
Outward Opening : yes

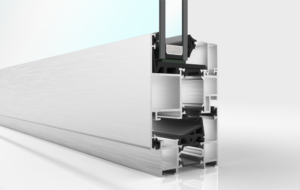

C67KA OPEN OUT
